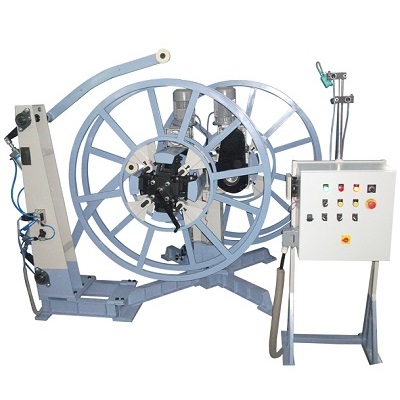

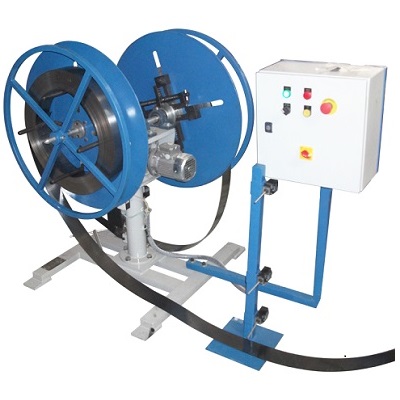

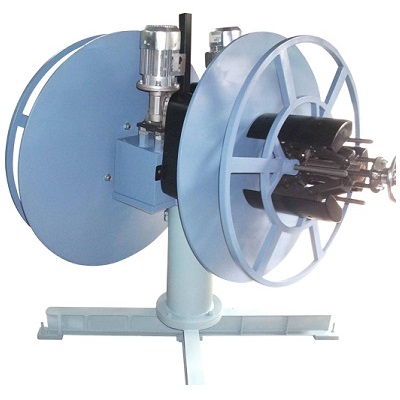

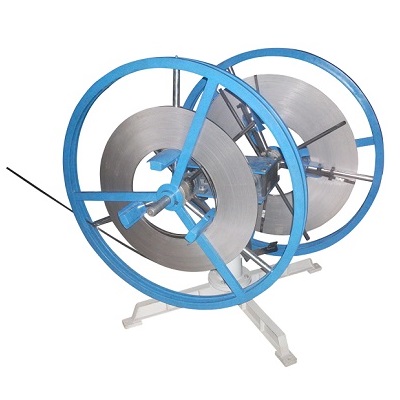

Motorised Vertical Double Head Decoiler

The Double Headed Decoiler Models minimizes the down time of coil changing.

It is possible to load the next coil while decoiling the first without stopping the production by simply unlocking and indexing the next coil comes in line with the press. The Unit incorporates two independent geared motor drives with an automatic change over switch.

Table of Specifications
Model No. Coil Weight (Kgs) Coil Width (mm) Coil OD (mm) Coil ID (mm)
MVDD150-150 150 x 2 150 800 200-450
MVDD500-300 500 x 2 300 1000 300-500
MVDD650-300 650 x 2 300 1000 350-450
MVDD1000-300 1000 x 2 300 1000 350-450
MVDD1500-300 1500 x 2 300 1000 400-500
MVDD2000-400 2000 x 2 400 1200 450-550

** other customised models available on demand
