Normal Duty Straightener

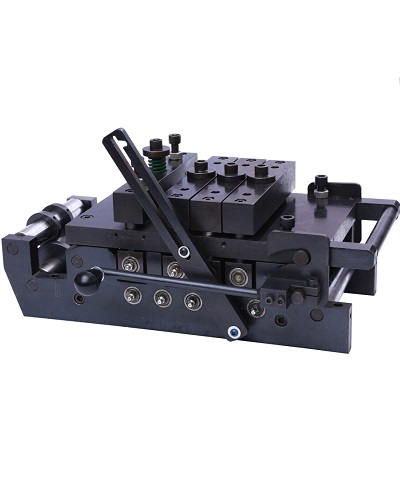

All rollers are mounted in precision needle roller bearings. Each of the three upper rollers has a central adjustment screw for quick easy setting. Both pinch drive rollers and all lower straightening rollers are geared together to achieve maximum traction and minimise roller slip.

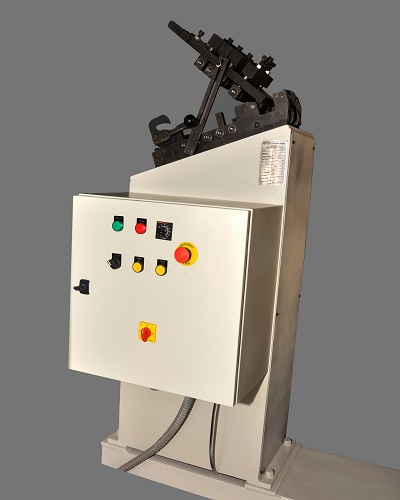

In a Motorised Version Straightener head is mounted on a sturdy cabinet enclosing motor, variable speed transmission including Touch Type Loop Control.

Table of Specifications
Model No. Width (mm) Thickness (mm) Roll Dia (mm) No. of Rollers (nos.)
MSND150-2.5 150 0.4 – 2.5 38 7 + 1
MSND200-2.0 200 0.4 – 2.0 38 7 + 1
MSND250-1.5 250 0.4 – 1.5 38 7 + 1
MSND300-1.3 300 0.4 – 1.3 38 7 + 1

** other customised models available on demand
