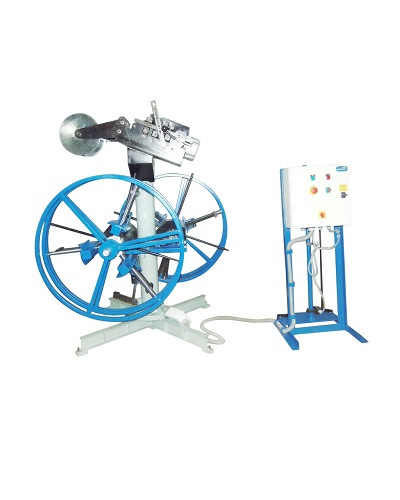

Compact Unit - Double Head

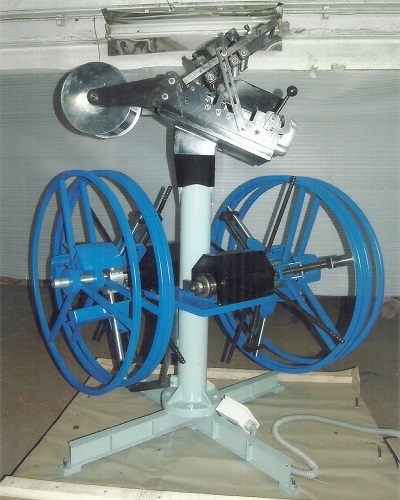

Based on the same design and principles a single coil holder head is replaced with double mandrel mounted on a swing round turntable below the straightener.

As with conventional double head Decoilers, these units have the big advantage that coils can be loaded onto one uncoiler head while the other is in use, giving substantial savings on press down time while changing coils.

Table of Specifications
Model No. Coil Weight (Kgs) Width (mm) Thickness (mm) Coil OD (mm)
TCDSN150/150-2.5 150 X 2 150 0.4-2.5 800
TCDSN500/300-1.5 300 X 2 300 0.4-1.5 1000
TCDSH500/300-3.0 500 X 2 300 0.4-3.0 1000
TCDSH1000/300-3.0 1000 X 2 300 0.4-3.0 1000

** other customised models available on demand
