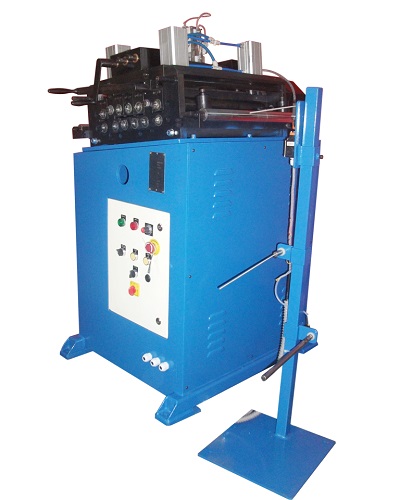

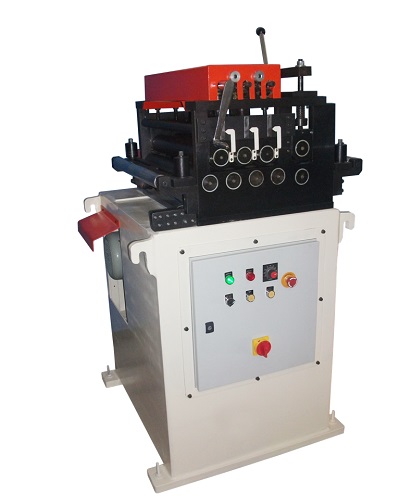

Heavy Duty Straightner

A range of powered precision straighteners with all pinch rollers and lower straightening rollers are geared together to for maximum traction. Top straightening rollers are each adjusted from a single point but a parallel motion ensures that the rollers are always held horizontal to the strip surface.

Table of Specifications
Model No. Width (mm) Thickness (mm) Roll Dia (mm) No. of Rollers (nos.)
MSHD150-4.0 150 0.5 – 4.0 50 7 + 2
MSHD200-3.5 200 0.5 – 3.5 50 7 + 2
MSHD300-3.0 300 0.5 – 3.0 50 7 + 2
MSHD400-2.5 400 0.5 – 2.5 50 7 + 2
MSHD500-2.0 500 0.5 – 2.0 50 7 + 2

** other customised models available on demand

  • Heavy Duty Straightner
  • Heavy Duty Straightner

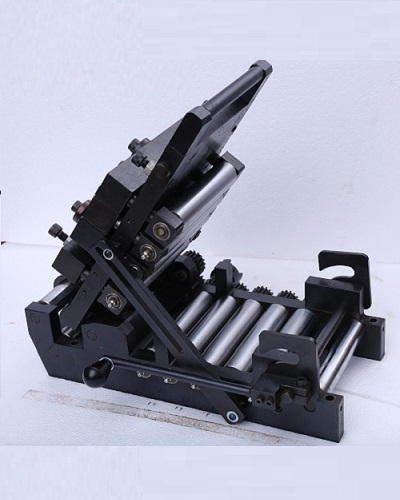

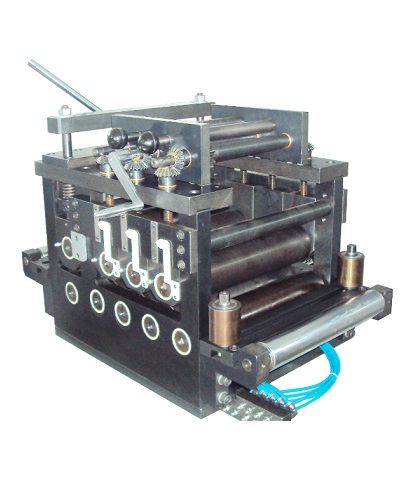

Other Straighteners
